Renn Stop Full AP Racing Pro 5000R Front Big Brake Kit - 380x36mm
Designed for F80 / F82 / F87 - M2 / M3 / M4 - Certified for track use only
It is important to check wheel clearance with our wheel templates here before purchase.

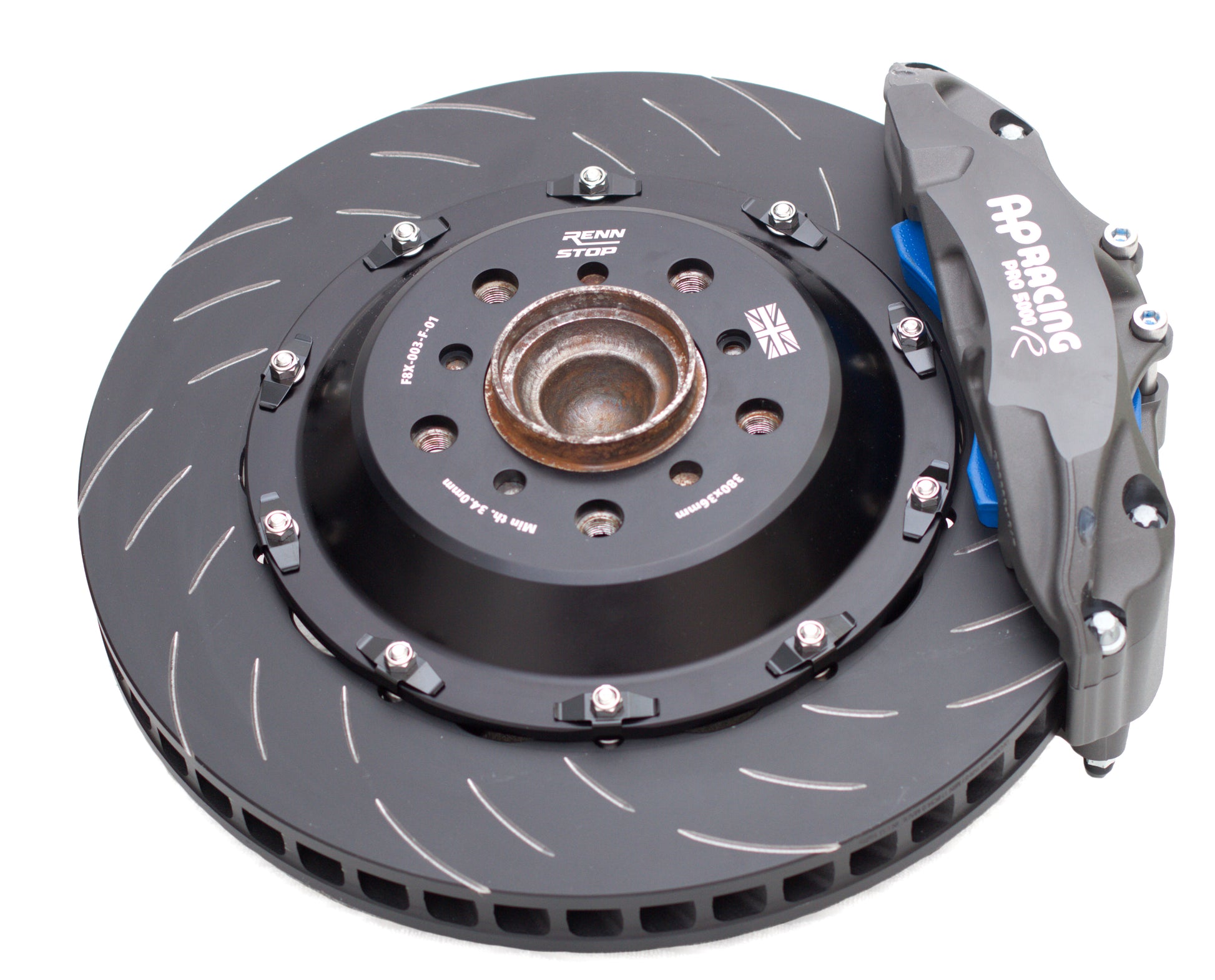

The AP Racing CP9660 caliper brings competition-proven engineering to your F8X front axle. This six-piston design pairs with fully floating 380x36mm race discs to maximise thermal efficiency and minimise fade during sustained braking events. The floating rotor architecture isolates heat from the hub, allows for free thermal expansion and reduces unsprung mass. Domed stainless steel pistons reduce heat transfer into the brake fluid and the increased caliper stiffness, combined with anti knockback springs translates to sharper brake response and improved modulation. This is a genuine upgrade for serious track work.
Features
- Fully floating 380x36mm light-weight race discs for improved cooling and thermal capacity (these are lighter than the stock 380x30mm disc)
- Increased caliper stiffness & anti-knockback springs improve pedal feel and modulation
- Larger pad area than stock for better heat management and longer pad life
- Reduced unsprung mass, for CP9660 calipers approx. weight saving:
- Compared to standard blue (380x30mm) setup - 4.5kg
- Compared to sliver/gold (2NH) setup - 15kg
- Massive pad selection of race pads which are generally cheaper than pads designed for OEM calipers
- Low cost of replacement rotors (cheaper than OEM)
Specs
- 6 Piston Front / 50.1cm² Piston Area
- Weight - 2.78 kg
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Grey anodised surface finish.
- Stainless Steel Pistons.
- High temperature seals.
- 4lb Anti-knockback springs.
- Stainless Steel wear plates.
Full Kit Contents:

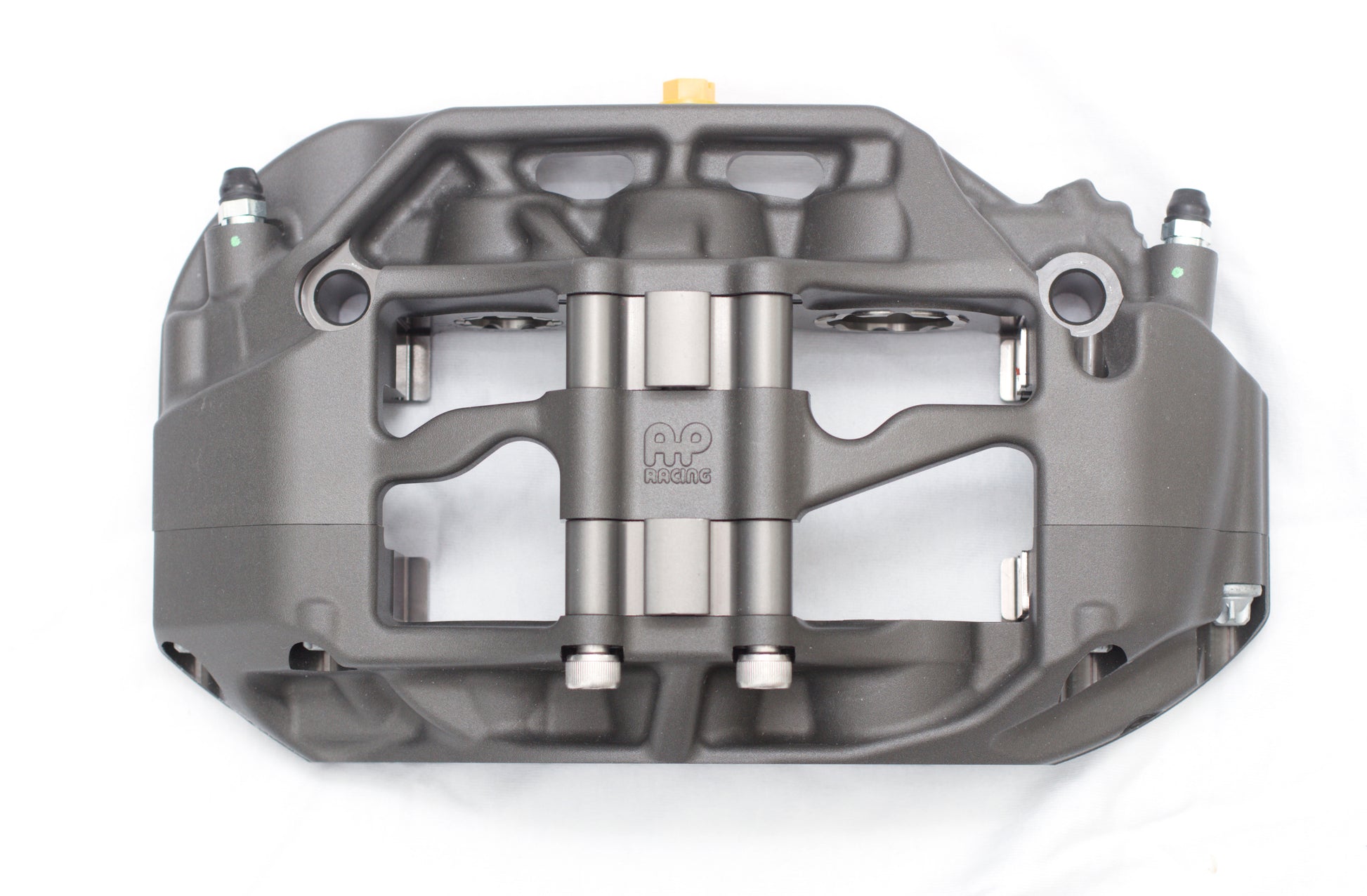

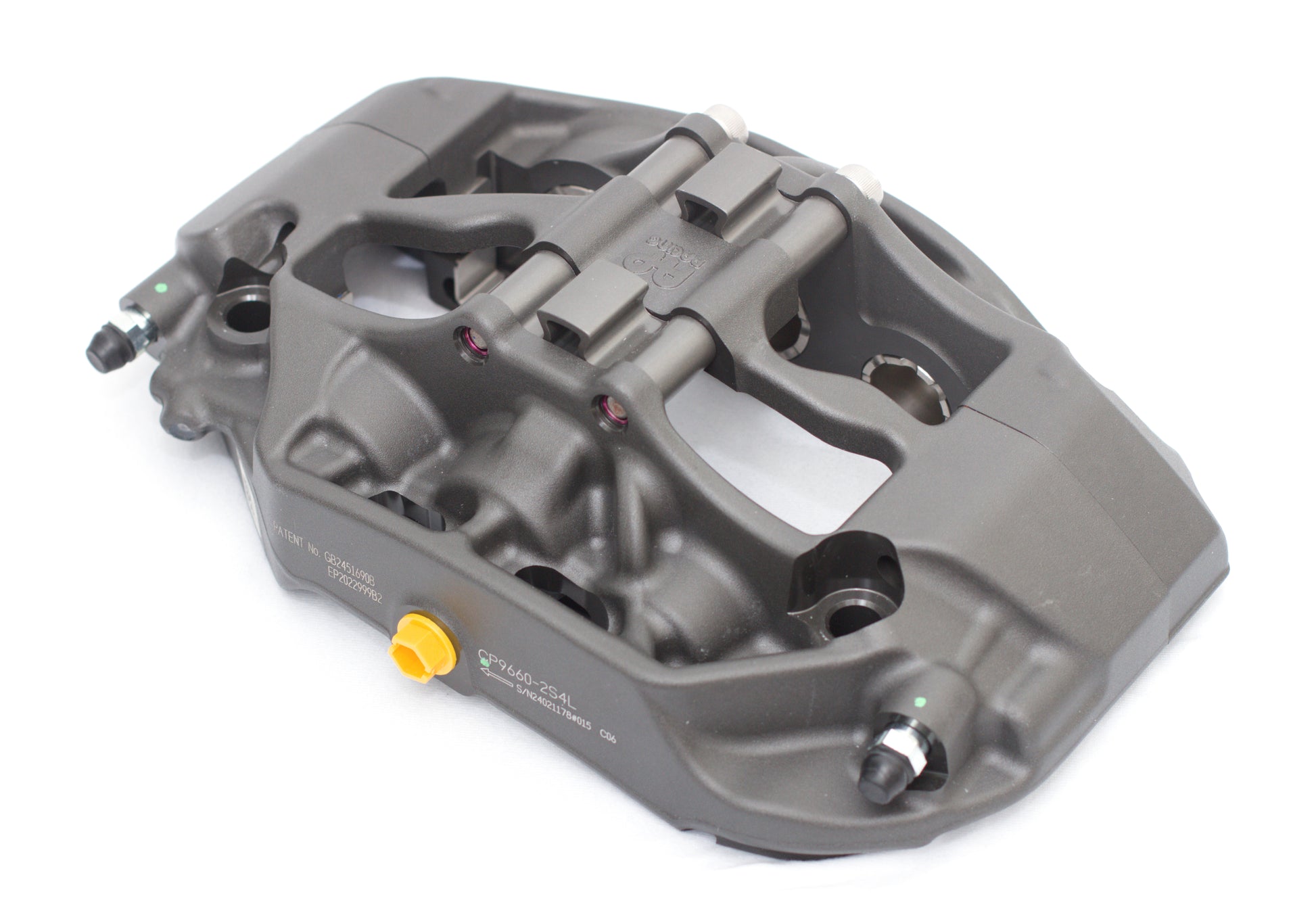

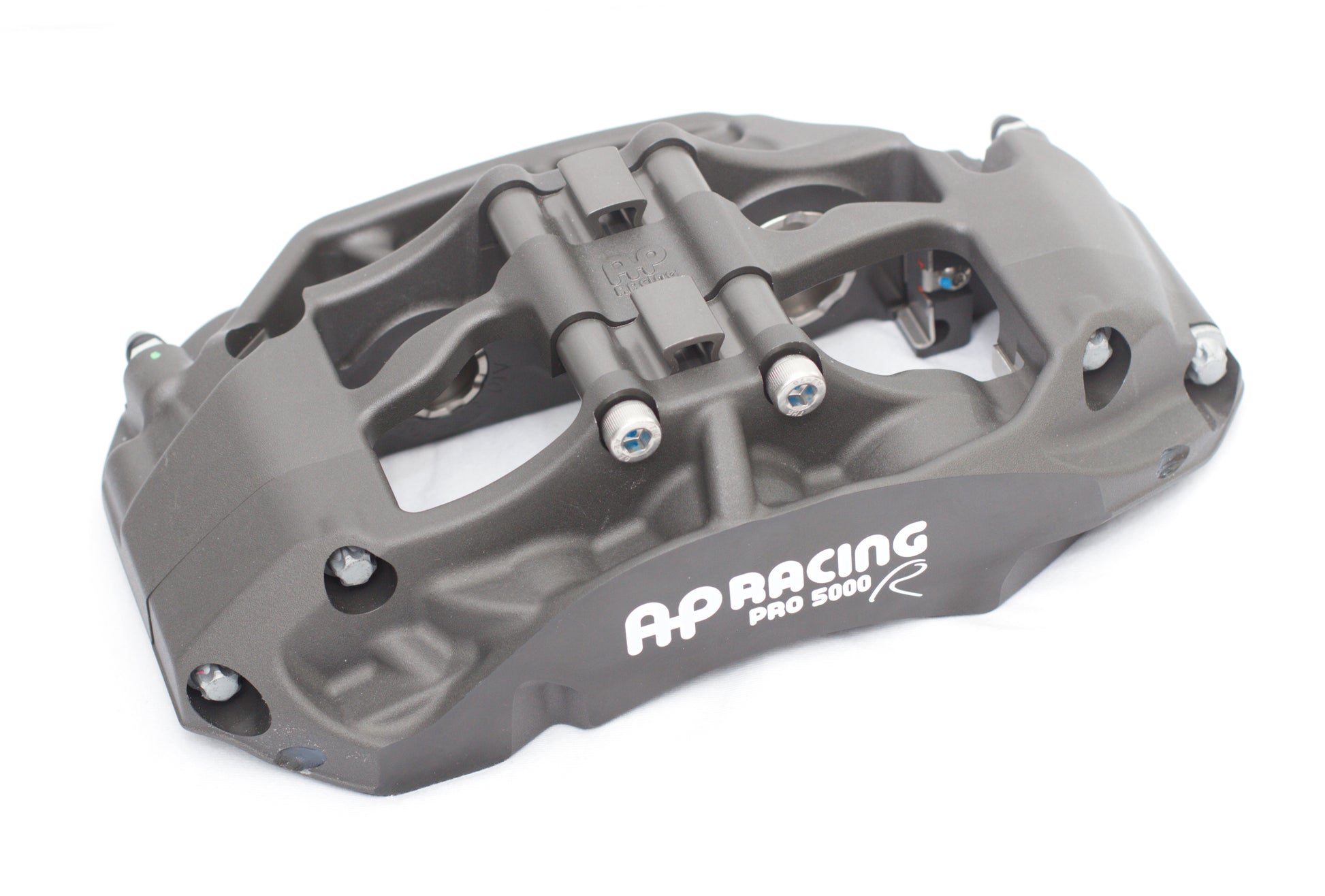

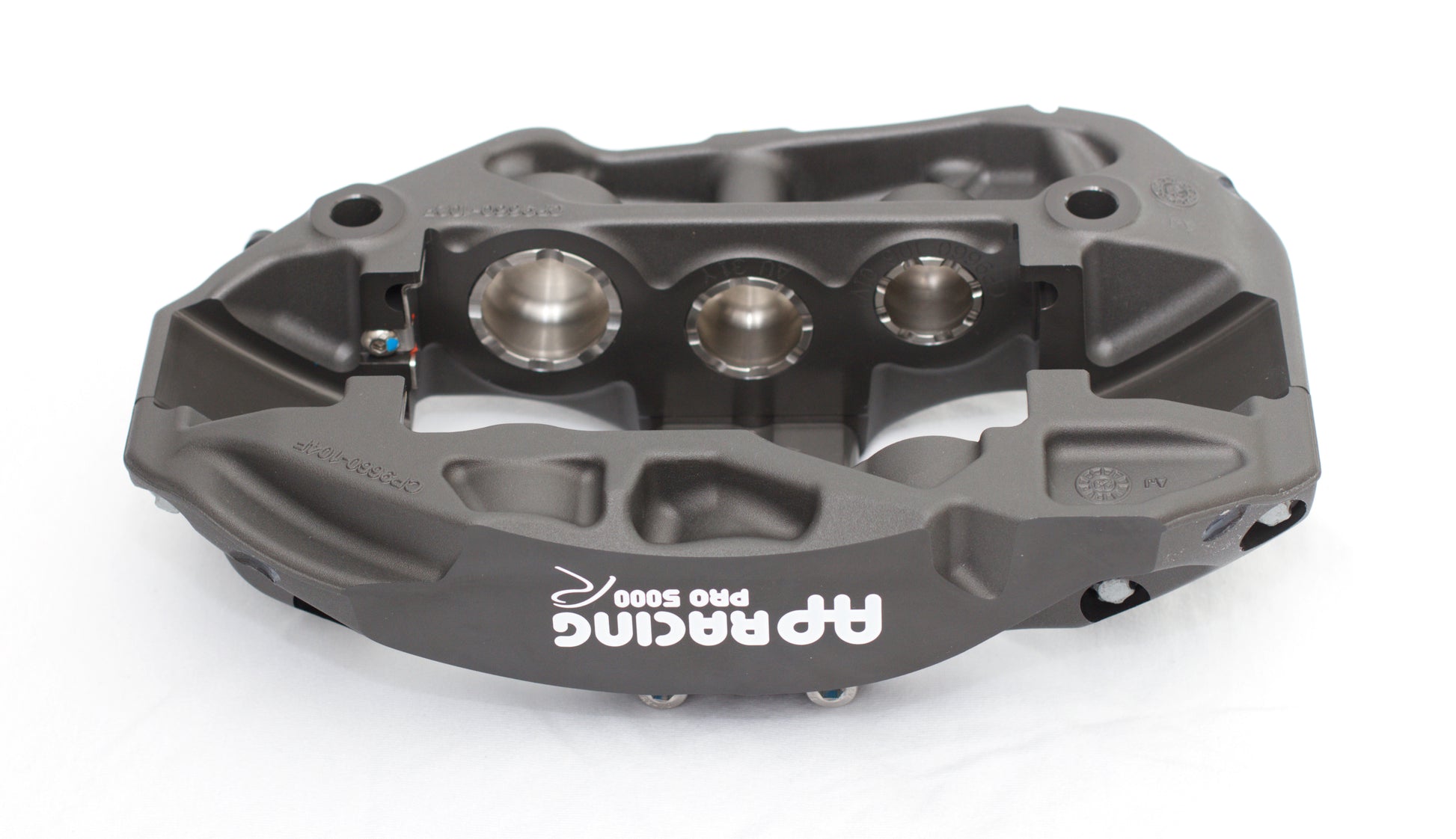

Choice of AP Racing 6 Piston Pro 5000R Front Calipers (Pair)
We recommend the standard CP9660 Caliper with hard anodised finish, this is the most cost effective and lightest option.
• Standard (18mm Pad) with Hard anodised finish - CP9660-2/3S4L
• Standard (18mm Pad) with Nickel Plated finish - CP9660-2/3S4LN
• Endurance (25mm Pad) with Hard anodised finish - CP9668-2/3S4L
• Endurance (25mm Pad) with Nickel Plated finish - CP9668-2/3S4LN

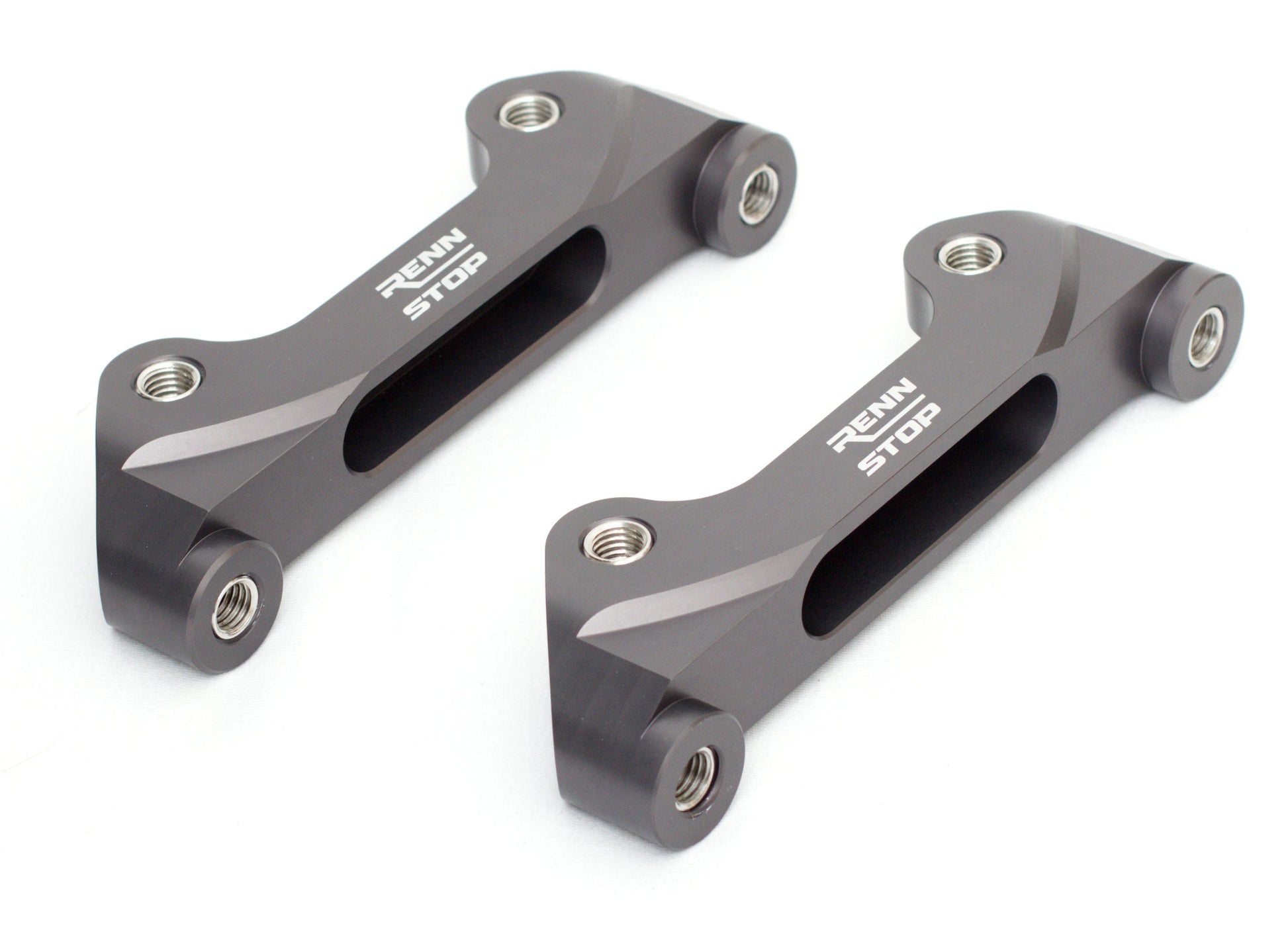

Rear Caliper Brackets
• 2x CNC machined brackets for AP Racing CP9660 Calipers
• 4x M12 flanged bolts for hub to bracket mounting - Grade 10.9
• 4x M12 Cap head bolts for caliper mounting - Grade 10.9
• 1x Bottle of Genuine Loctite 243 (1.8 ml)

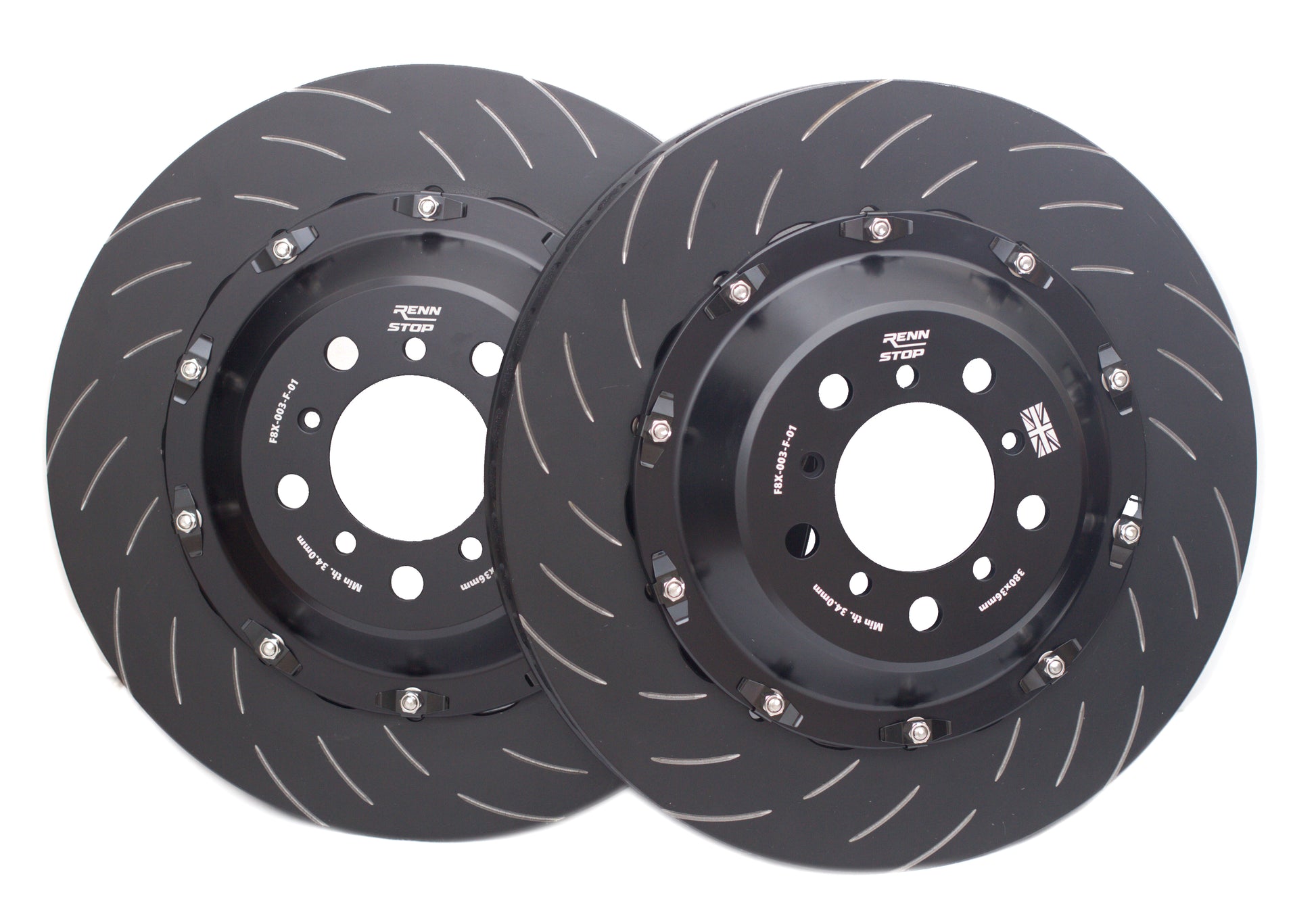

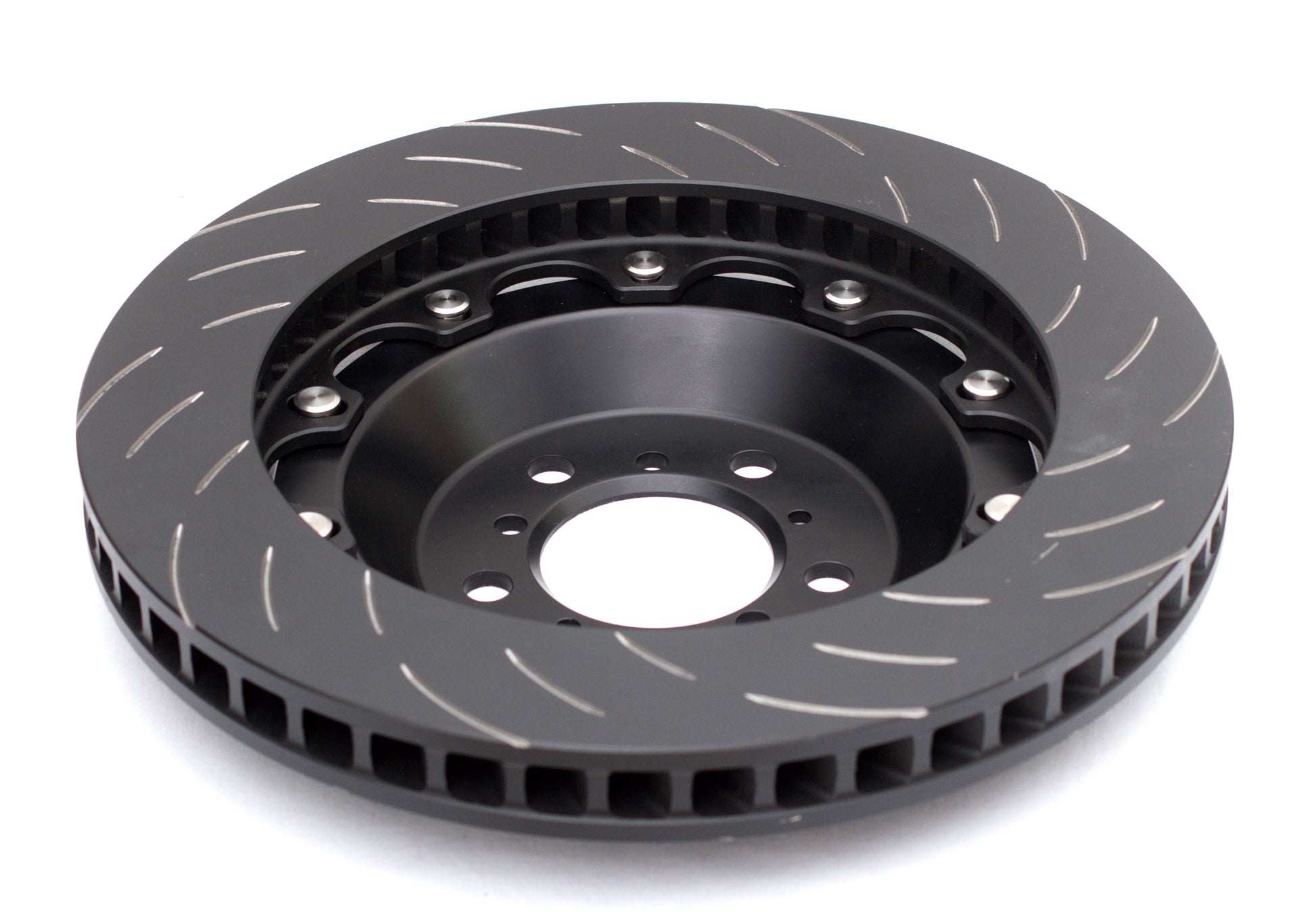

F8X Front Discs - 380x36mm (Pair)
• 2x CNC machined Renn Stop front bells for F8X - M2/M3/M4
• 1x Left EBC 380x36mm rotor (with nuts, washers and anti-rattle springs)
• 1x Right EBC 380x36mm rotor (with nuts, washers and anti-rattle springs)
• 2x Stainless Steel Bobbin kits
F8X HEL Front Braided brake lines
• 2x HEL Front Braided custom brake lines with Banjo bolts
No pads are included due to massive selection and personal preference

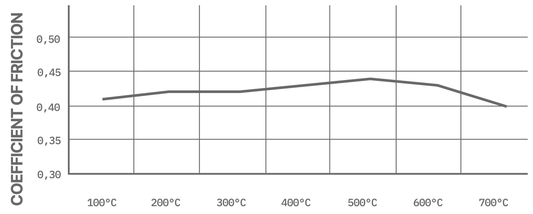

We do sell a selection of pads for this kit here:

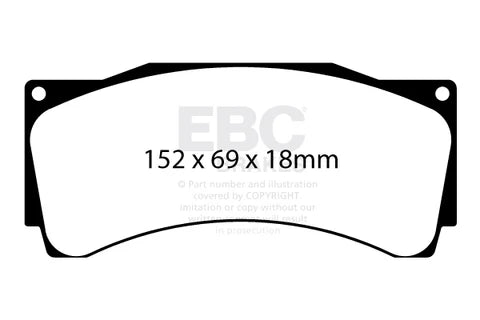

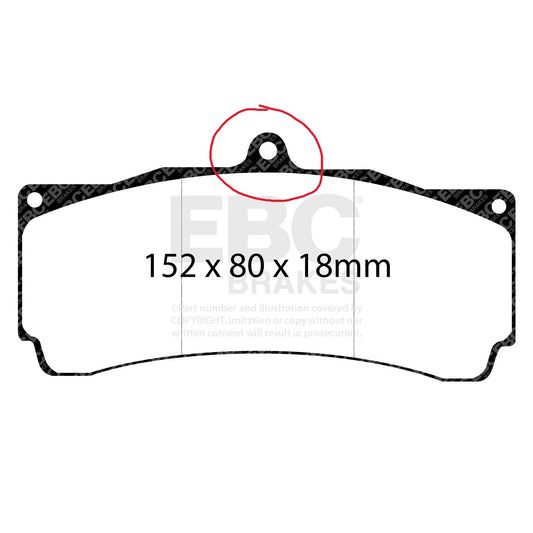

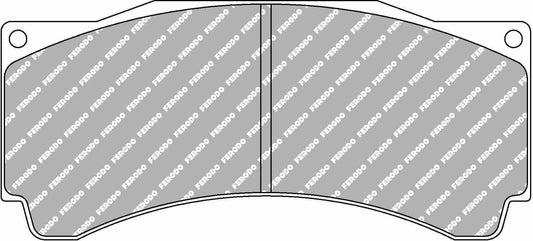

For CP9660 (18mm thick)

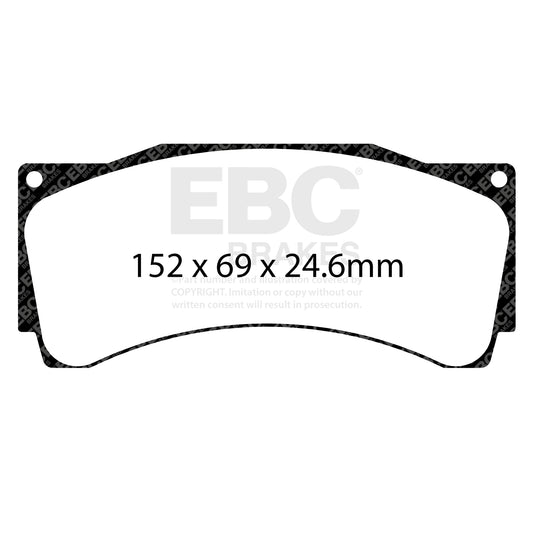

For CP9668 (25mm thick)
Matching rear 380x30mm kit available here.
Full Kits are assembled to order, estimated ship date calculated based on standard lead times.
